Wire rope hoists

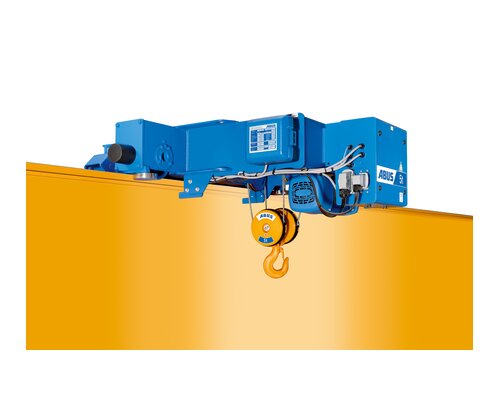

Type S – side-mounted hoist


At a glance
  • SWL range 1 t - 10 t.
  • Hook positioned beside the crane girder.
  • Optimised highest hook position.
  • Allows building heights to be reduced.
Type S – side-mounted hoist

TYPE S – SIDE-MOUNTED HOIST

The side-mounted hoist type S is characterised by the hook being positioned beside the crane girder. Thus an optimised highest hook position is achieved in the SWL range of 1 t to 10 t. The optimised hook position is not only an advantage in existing buildings. When designing new factory buildings the side-mounted hoist type S can be employed to reduce the total investment costs: it is possible, for example, to design cranes with spans of up to 35 metres or more as single girder cranes. Compared with a single-girder crane using a monorail hoist type E the building height can be reduced which will result in a lower cost volume. Compared with a double-girder crane of about the same height, the loads on the crane track and the building are significantly lower which is often another cost advantage.

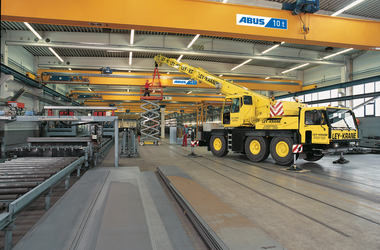

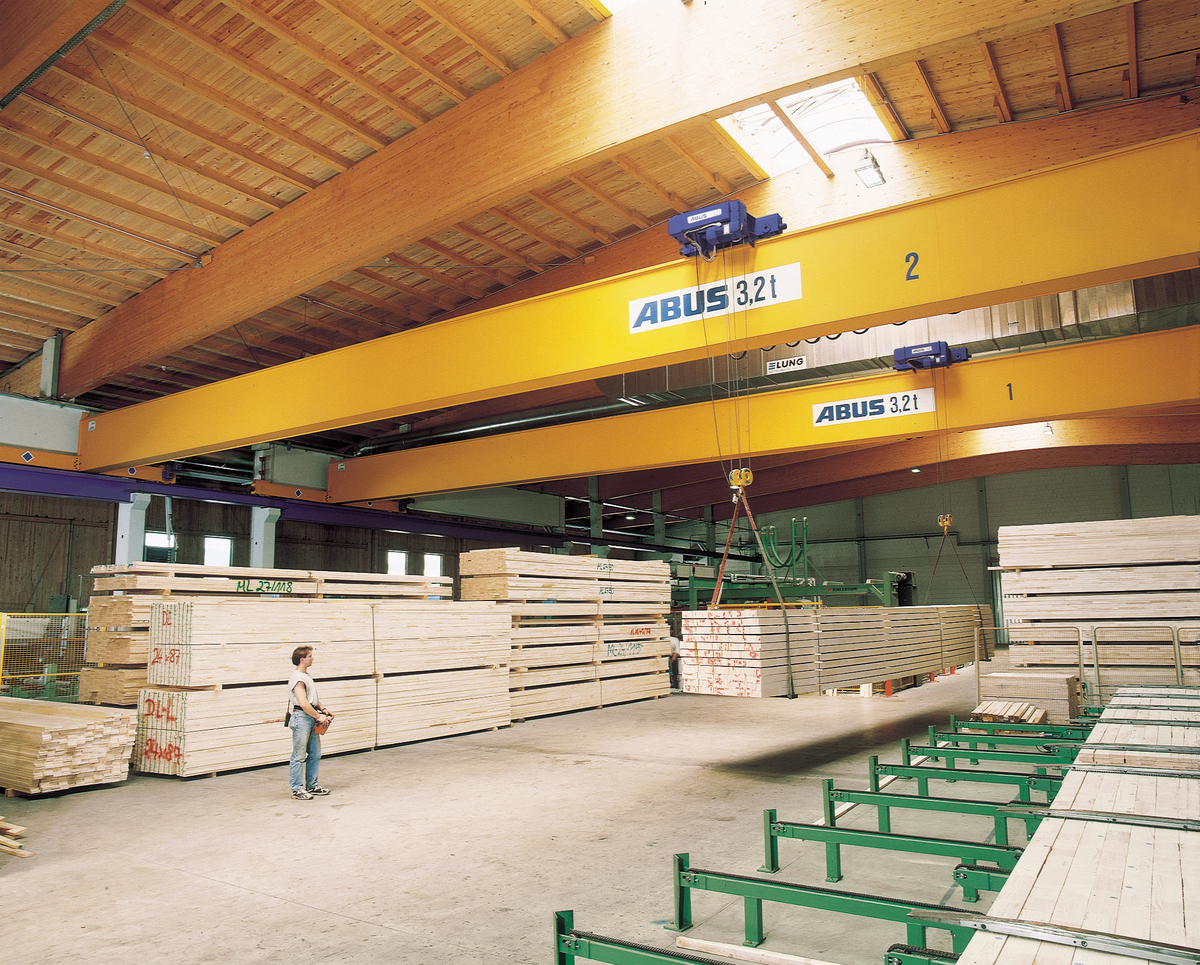

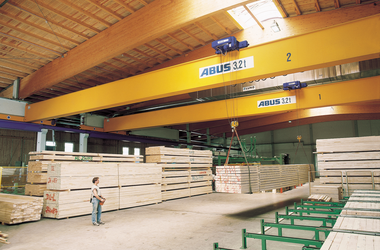

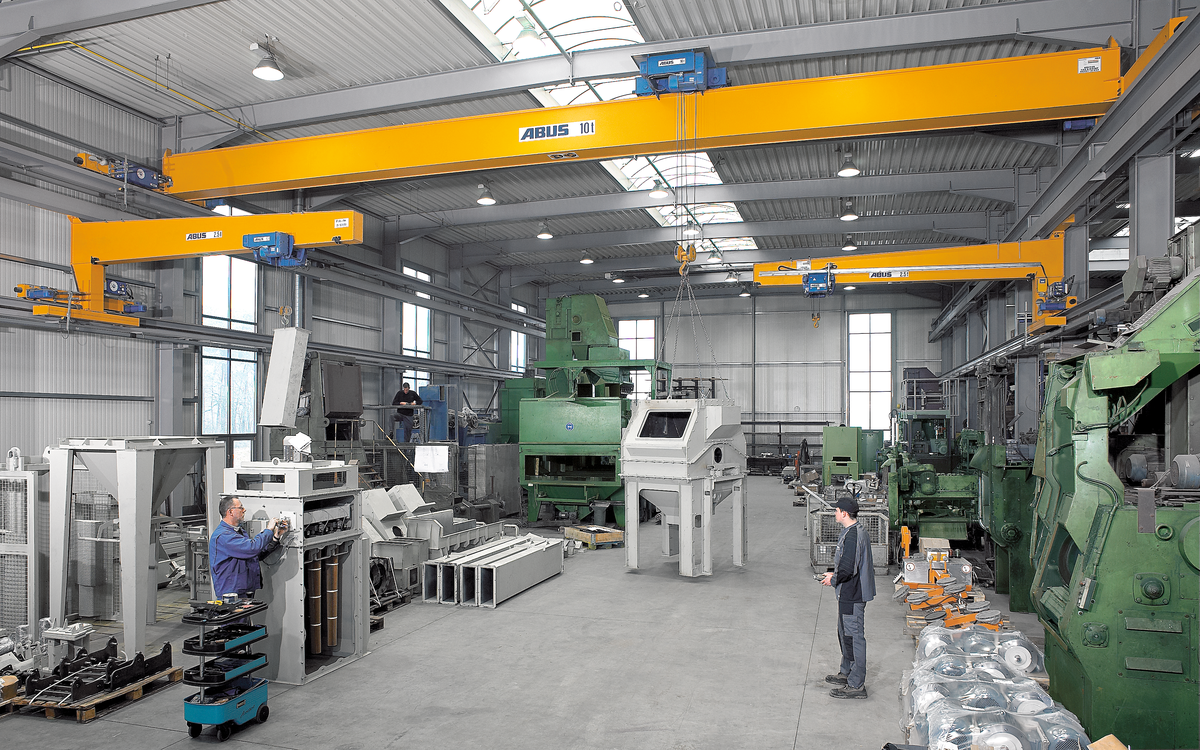

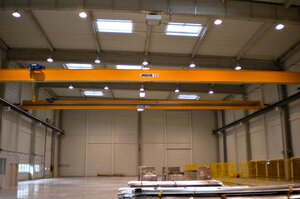

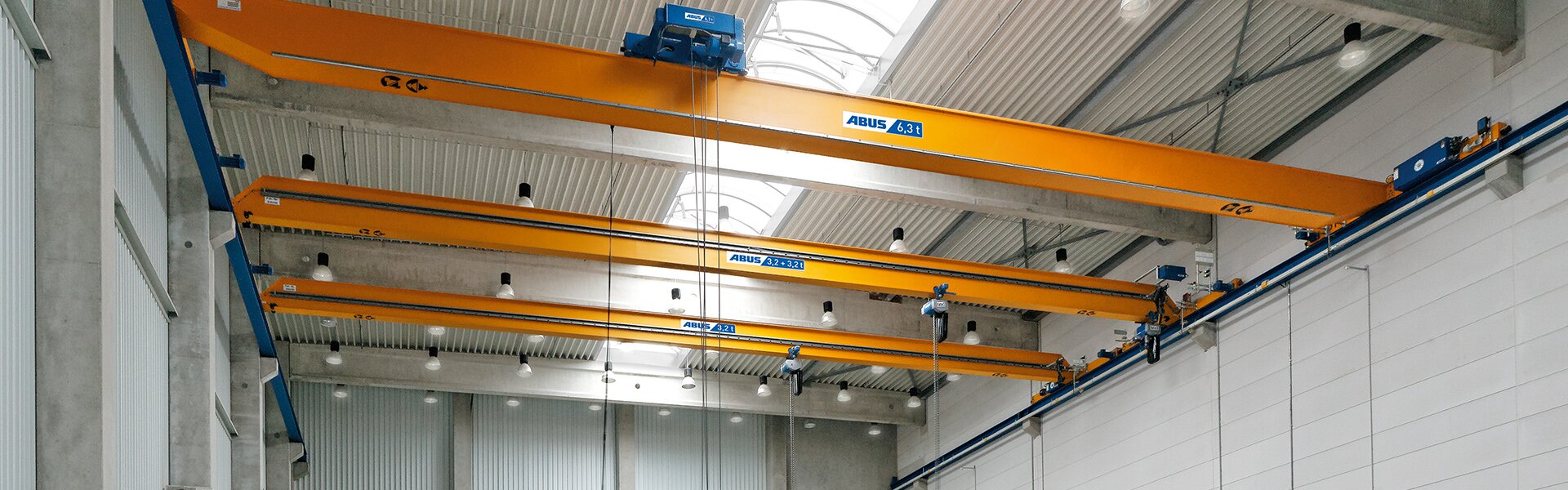

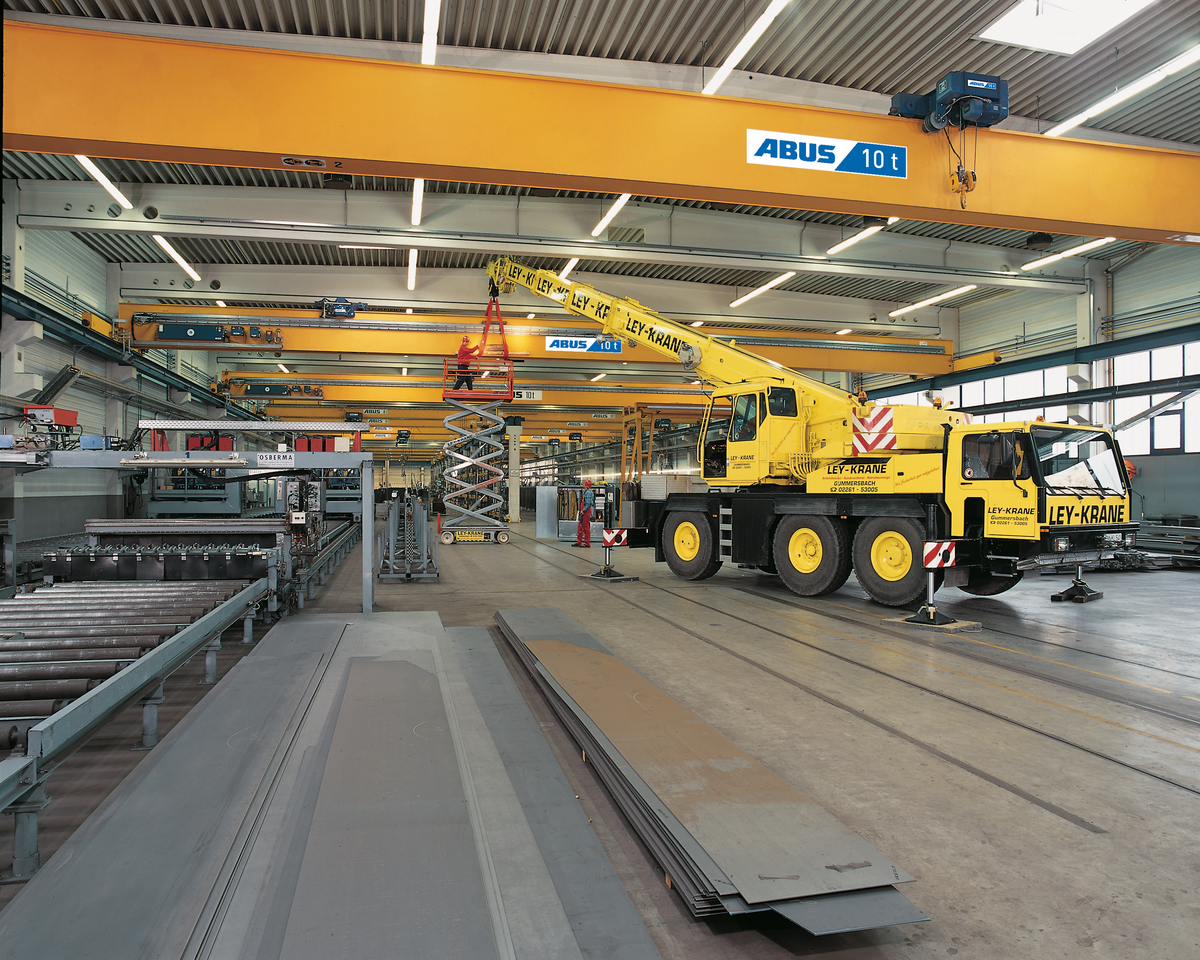

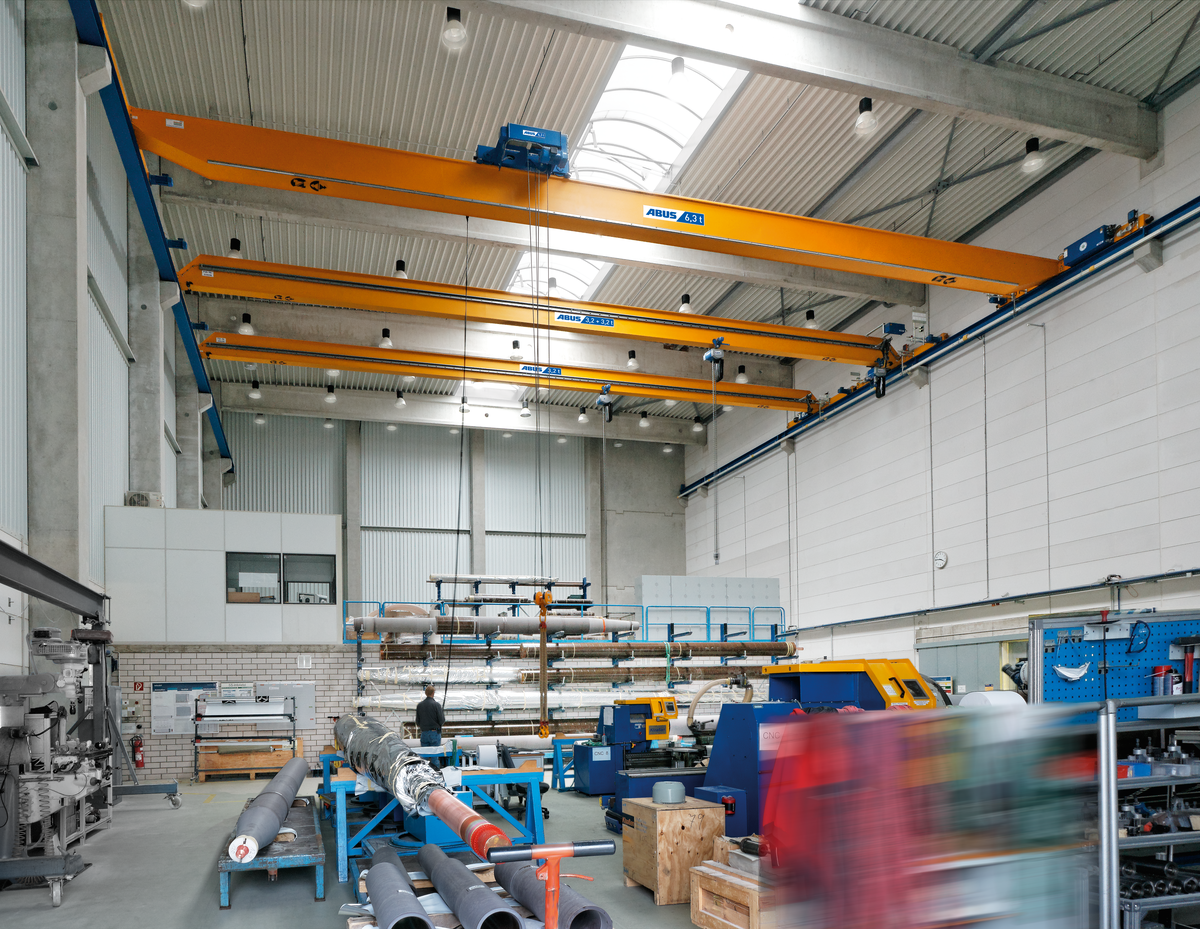

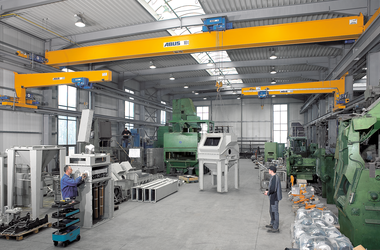

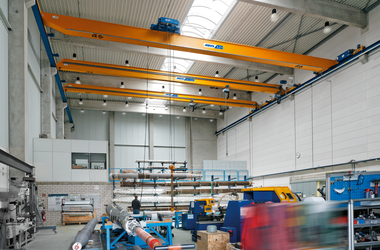

This product in action
