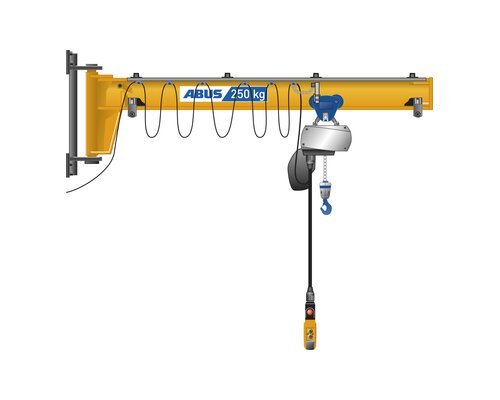

Wall jib crane LWX
At a glance
- SWL up to 0.5 t.
- Jib length up to 7 m.
- Slewing range 180°.
- With ABUS electric chain hoist.
- Great range of additional equipment as option.
- With various mounting options.
Then request now for an offer!
WALL JIB CRANE LWX

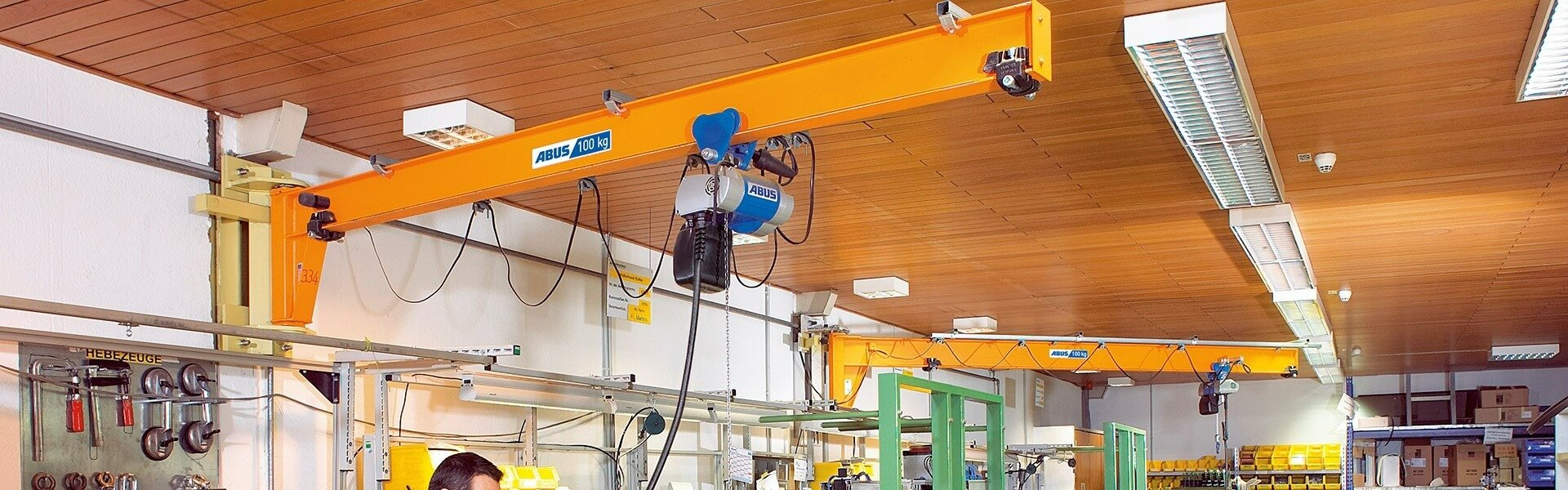

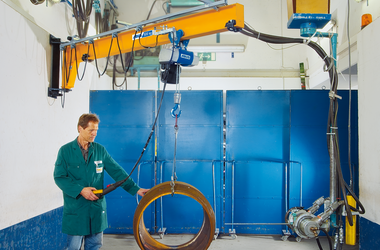

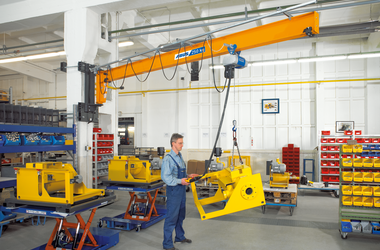

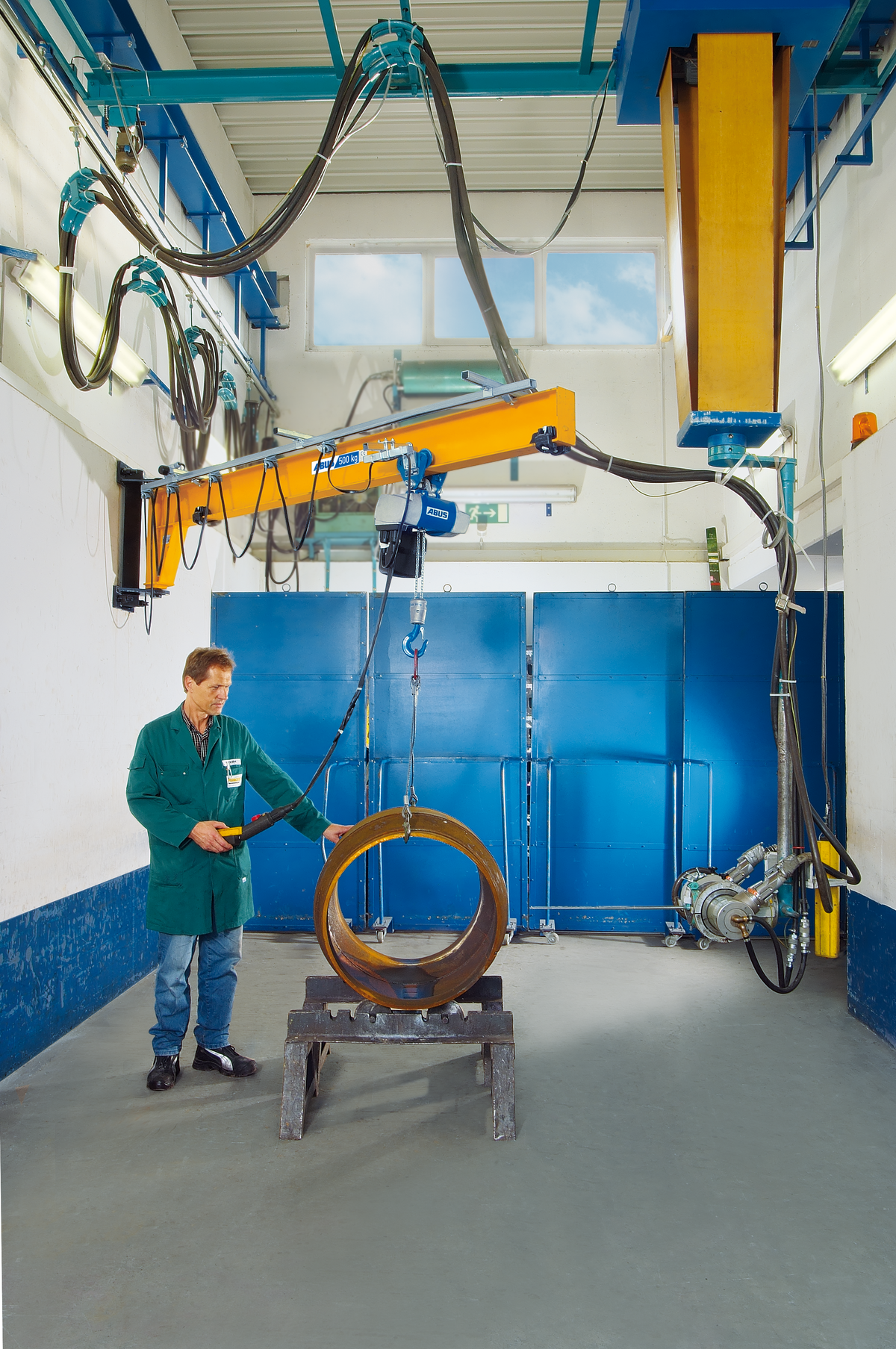

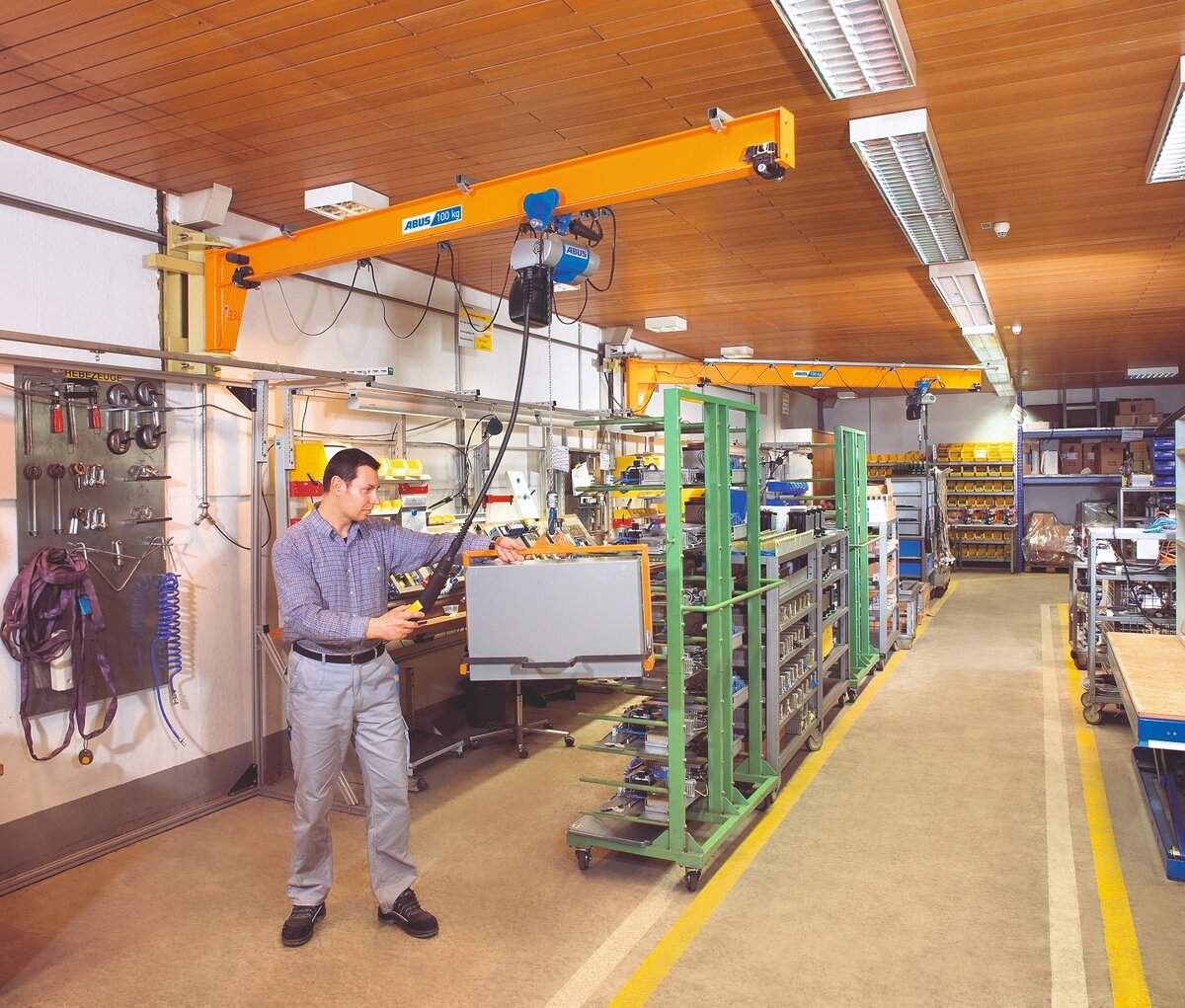

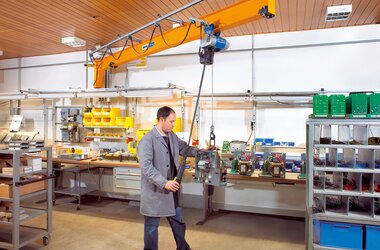

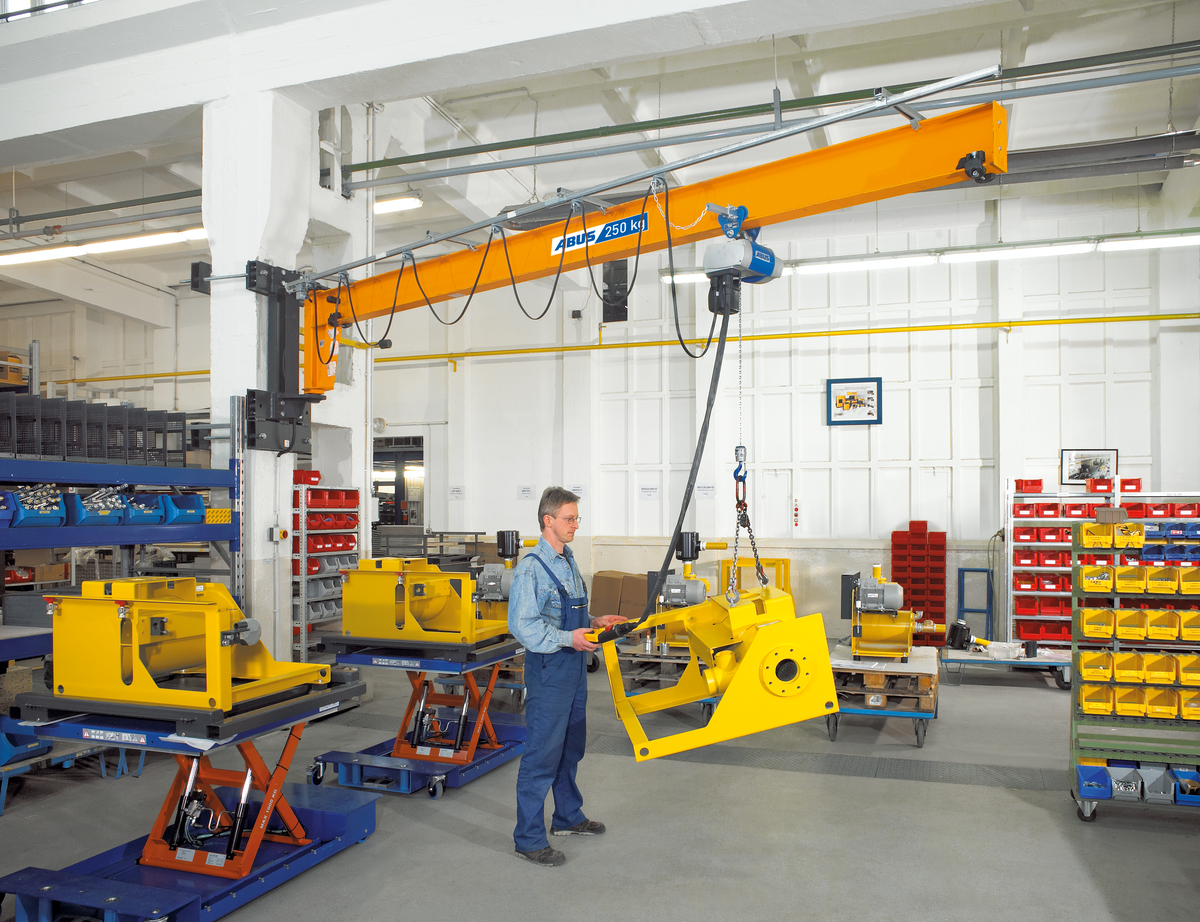

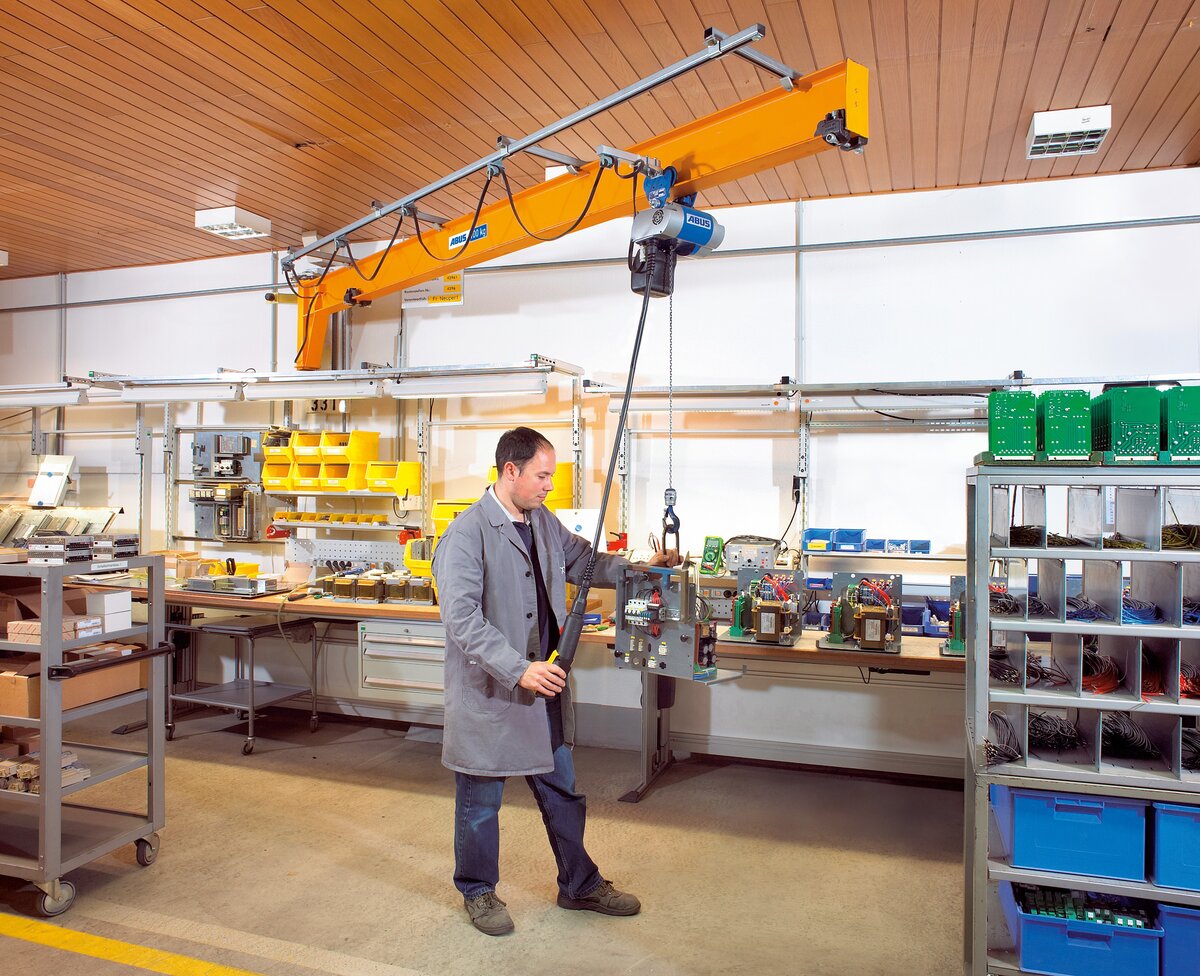

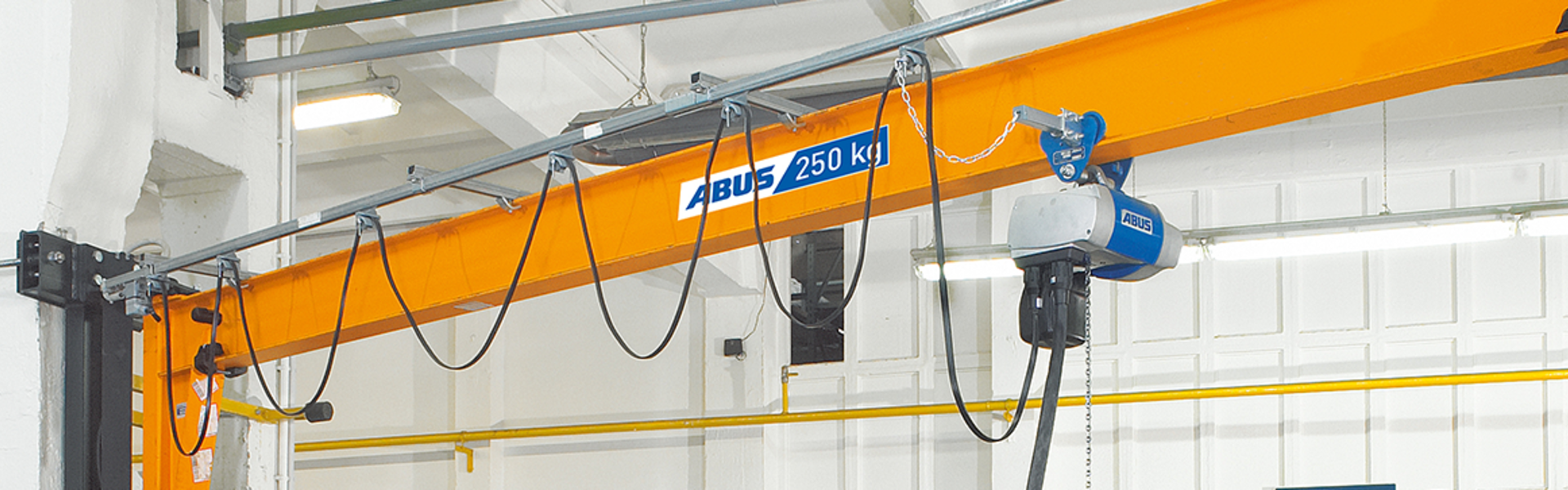

The wall jib crane LWX has been designed to be mounted on a wall or column. This workstation crane provides a slew range of 180° with jib arm lengths of up to 7 m and Safe Working Loads (SWL) of up to 0.5 t.

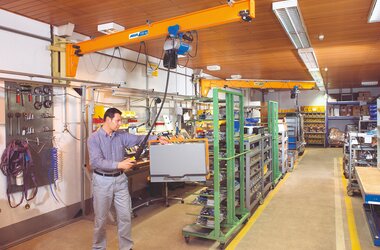

Low ceilings and lack of floor space are typical criteria for selecting the LWX wall jib crane. Its low-build headroom dimensions offer a favourable lift height. In addition to the comprehensive standard features, this crane may adapted individually by making use of useful additions such as electric hoist travelling or radio remote control ABURemote.
The wall bracket included in the delivery is used to mount the crane on a steel support within a wall for example. Other mounting solutions are available for different building arrangements.
ABUS WALL JIB CRANE LWX
THE MASTER OF ASSEMBLY
Rated slewing
range 180°
with electric chain hoist
- lightweight design conforming to
DIN 15018 H2/B2) - sturdy, with low-build profile section
jib arm for optimised hook height - standard wall bracket
- easy installation of hoist trolley due to removable
jib end plate and adjustable clamping buffers
