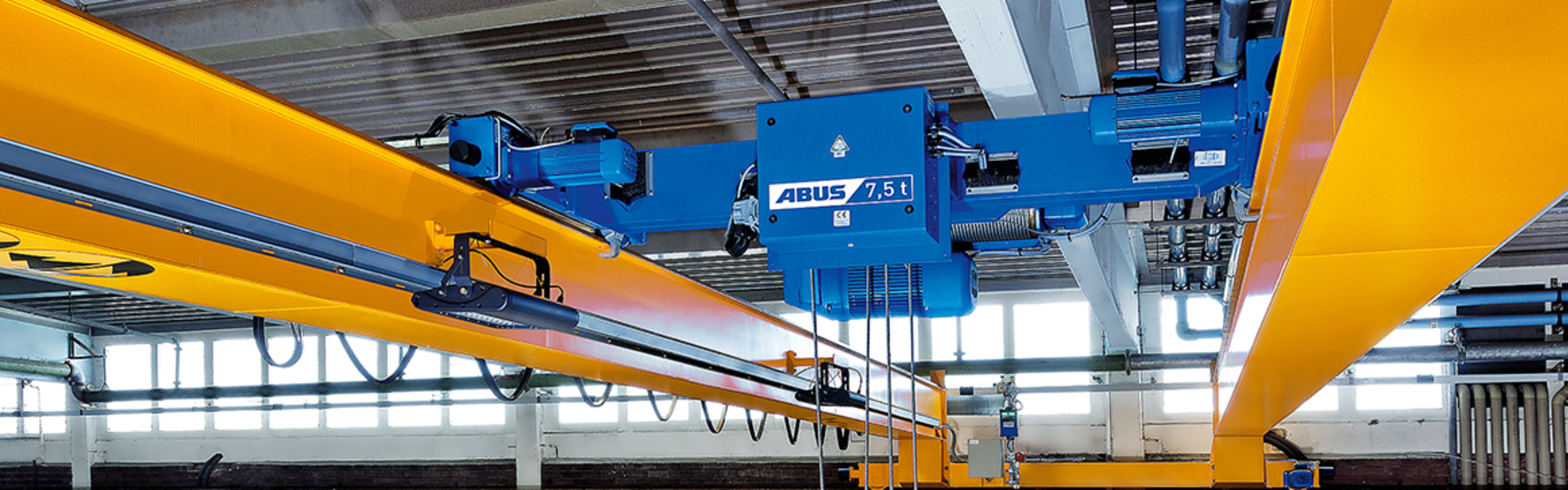

Type DA - low headroom crab unit

At a glance

  • SWL range 1 - 40 t.
  • Minimum overall headroom dimensions.
  • May be used where very little space is available above the crane.

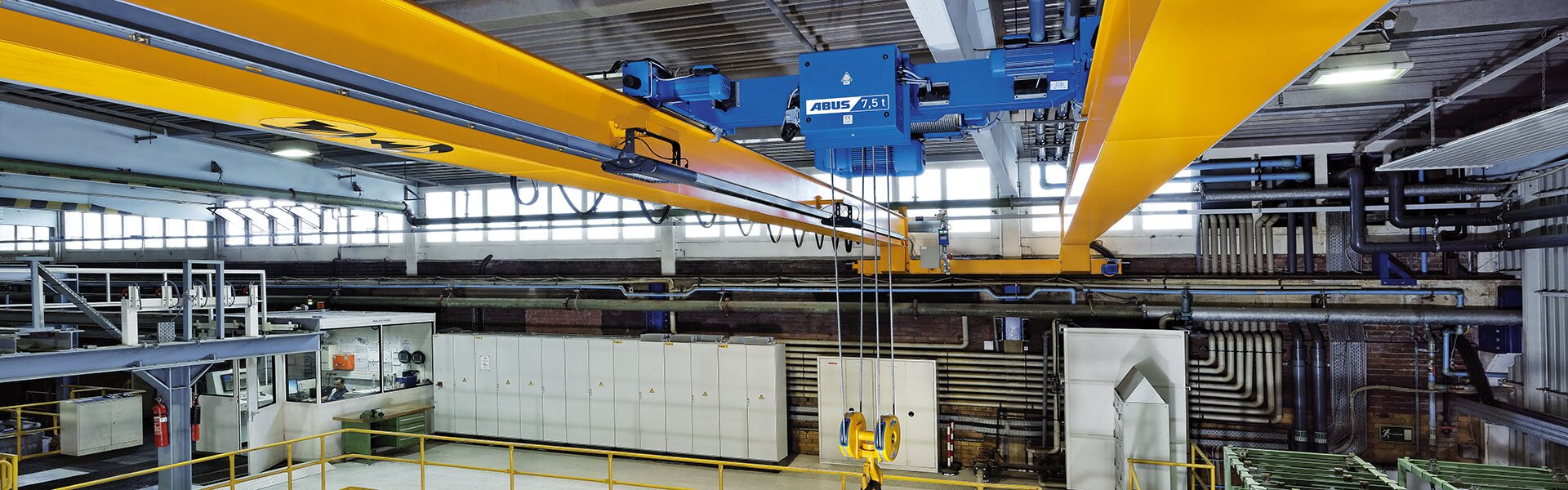

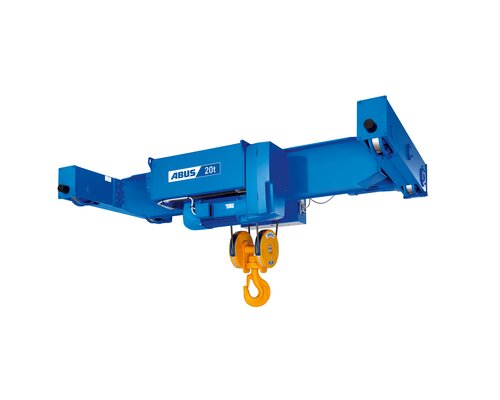

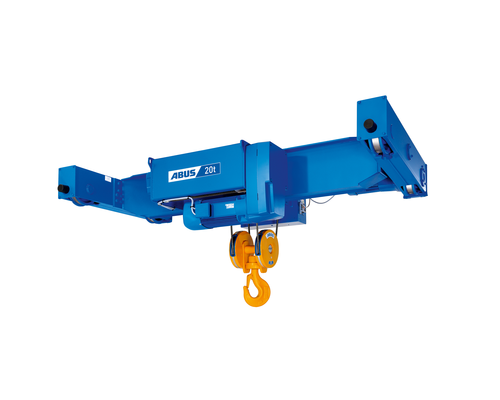

Figure ABUS double rail trolley type DA

TYPE DA - LOW HEADROOM CRAB UNIT

In contrast to type D, the supporting member with the hoist between the end carriages is equipped with articulated joints. The hoist headroom is therefore reduced to a minimum. This is the option to use where very little space is available above the crane, as an alternative to type DQA, also a low headroom option.

RELATED PRODCUTS

Figure ABUS monorail trolley type E
Type E – monorail hoist
16 t
Figure ABUS bottom flange trolley type U
Type U – monorail hoist with twin trolleys
25 t
Seitenlaufkatze Bauart S
Type S – side-mounted hoist
10 t
Figure ABUS double rail trolley type D
Type D – standard crab unit
63 t
Figure ABUS double rail trolley type DQA
Type DQA – ultra low headroom crab unit
40 t
Figure ABUS double-rail trolley type Z with twin hoisting gear
Type Z – twin barrel crab unit
120 t

Do you require assistance in making a decision?

Do you have a specific question about a product or need expert assistance in choosing your new crane system? Then contact your personal representative directly or simply send us a short message using the contact form!

Contact Find a contact person

Downloads

ABUS Electric wire rope hoists
ABUS Electric wire rope hoists Download PDF (4.30 MB)
ABUS hook block scale
ABUS hook block scale Download PDF (349.14 KB)

This product in action

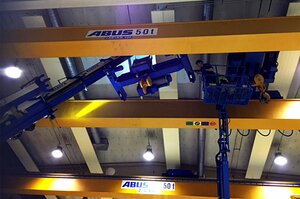

Assembly of an auxiliary hoist on double girder travelling crane in Brunvoll company
