Type E – monorail hoist

At a glance

SWL range 1 t - 16 t
Compact design.
Two direct drive cross travel motors.
Cross travel trolley adjustable to suit various flange widths.

Interested in this product?
Then request now for an offer!

Price enquiry

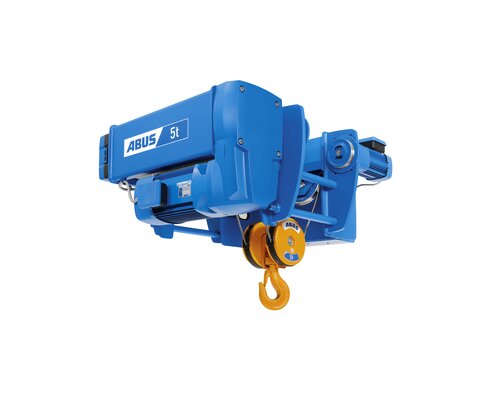

TYPE E – MONORAIL HOIST

The type E monorail hoist is our most frequently ordered hoist in the lower Safe Working Load range between 1 t and 16 t. These hoists tend to be the most economic choice for many standard applications of material flow. The compact design of the type E wire rope hoist offers favourable dimensions. The hoists feature two direct drive cross travel motors. The cross travel trolley is adjustable to suit various flange widths.

RELATED PRODCUTS

Type U – monorail hoist with twin trolleys

25 t

Type S – side-mounted hoist

10 t

Type D – standard crab unit

63 t

Type DA - low headroom crab unit

40 t

Type DQA – ultra low headroom crab unit

40 t

Type Z – twin barrel crab unit

120 t

ABUS GM WIRE ROPE HOISTS
FOR SINGLE-GIRDER CRANES

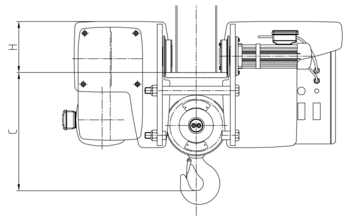

Model	Reeving	Load cap. (t)	Hook path (m)	C (mm)	H (mm)
GM 800	4/1	3,2	6 / 9 / -	400	176
GM 1000	2/1	2,5	12 / 18 / 24	567	196
GM 2000	2/1	3,2	12 / 18 / 24	580	213
	4/1	6,3	6 / 9 / -	500	213
GM 3000	2/1	6,3	12 / 20 / 30	665	251
	4/1	10	6 / 10 / 15	580	251
	4/1	12,5	6 / 10 / -	580	251
GM 5000	2/1	10	12 / 20 / 30	830	273
	4/1	16	6 / 10 / -	825	273
GM 6000	2/1	10	12 / 20 / .	830	293
	2/1	12,5	12 / - / -	830	293
