Underslung overhead travelling crane

At a glance

SWL up to 8 t.
Spans up to 25m (SWL dependent).
Crane track suspended from ceiling.
Ideal for low buildings and complex building conditions.
Optimal side approach dimensions maximise available building width.
Intelligent functions—an option with the crane control ABUControl

Interested in this product?
Then request now for an offer!

Price enquiry

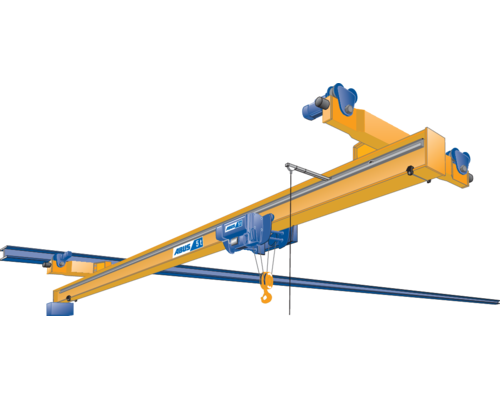

UNDERSLUNG OVERHEAD TRAVELLING CRANE

Complex building conditions require specialised solutions, easily realised with ABUS underslung overhead travelling cranes. The gantry tracks are fitted to ceilings rather than free-standing or building columns. Thus best possible results are achieved even in tight spaces and difficult conditions.

ABUS underslung overhead travelling cranes make optimal use of the available building width by featuring very small side approach dimensions and bespoke main girder cantilevers. It is also possible to optimise the highest hook position by stooling up the main girder between end carriages.

ABUS underslung overhead travelling cranes offer load capacities of up to 8 t and spans of up to 25 m. The design versions DLVM and EDL feature rolled section girders. EDKs are designed with torsion resistant welded box girders. A comprehensive programme of accessories and components is also available for ABUS underslung overhead travelling cranes.

RELATED PRODCUTS

Single girder overhead travelling crane

16 t

39 m

Double girder overhead travelling crane

120 t

42 m

Single girder wall travelling crane

5 t

12 m

Single girder semi-goliath crane

10 t

15 m

HIGH PERFORMANCE
UNDER SPECIAL CIRCUMSTANCES

MAIN GIRDER CONNECTION VERSIONS

for EDL and EDK

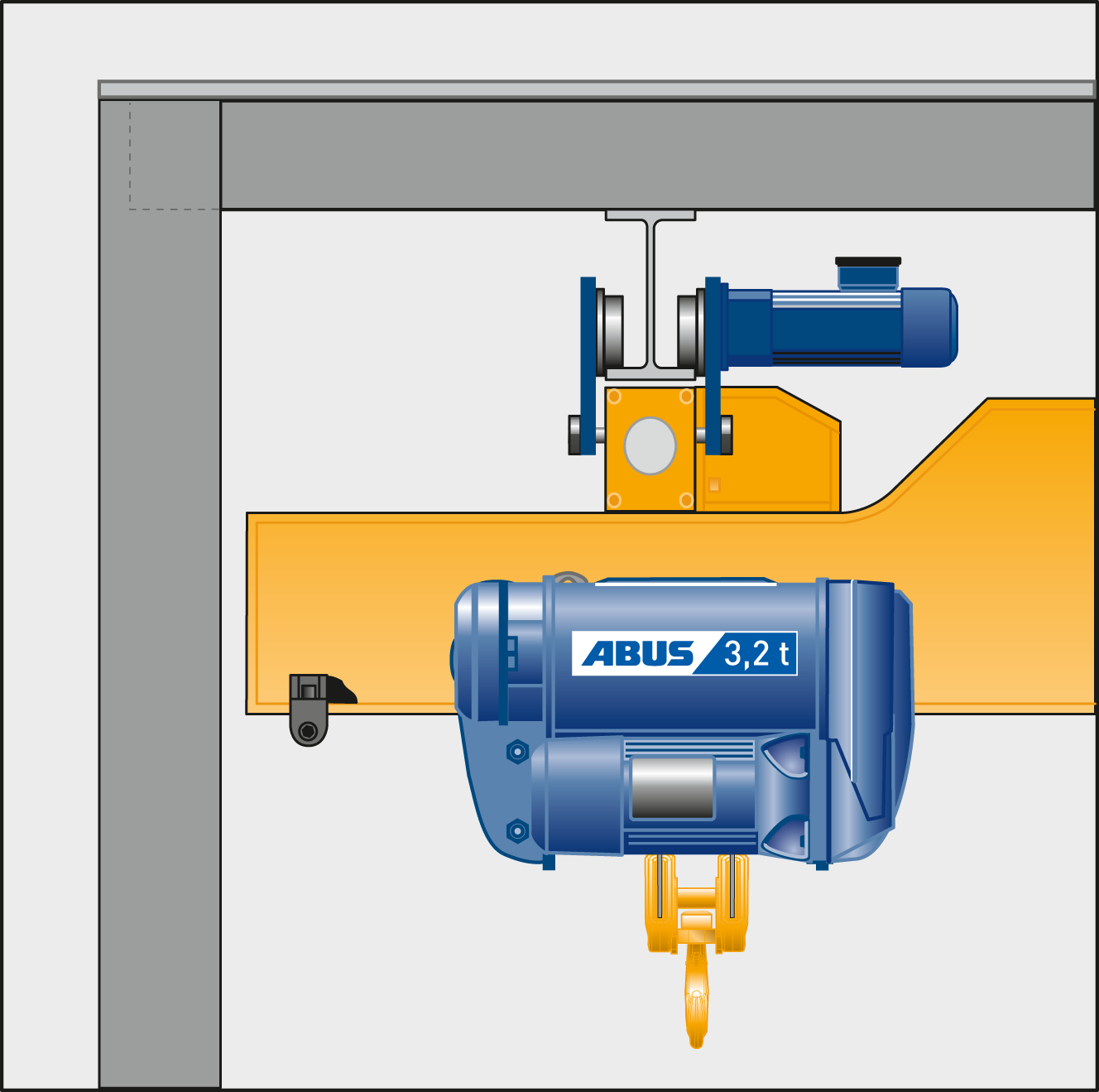

Standard main girder connection configuration – Version 1 (variable cantilever for minimum side approach dimension

Standard main girder connection configuration Version 1, ‘angled’ (variable cantilever for minimum side approach dimension)

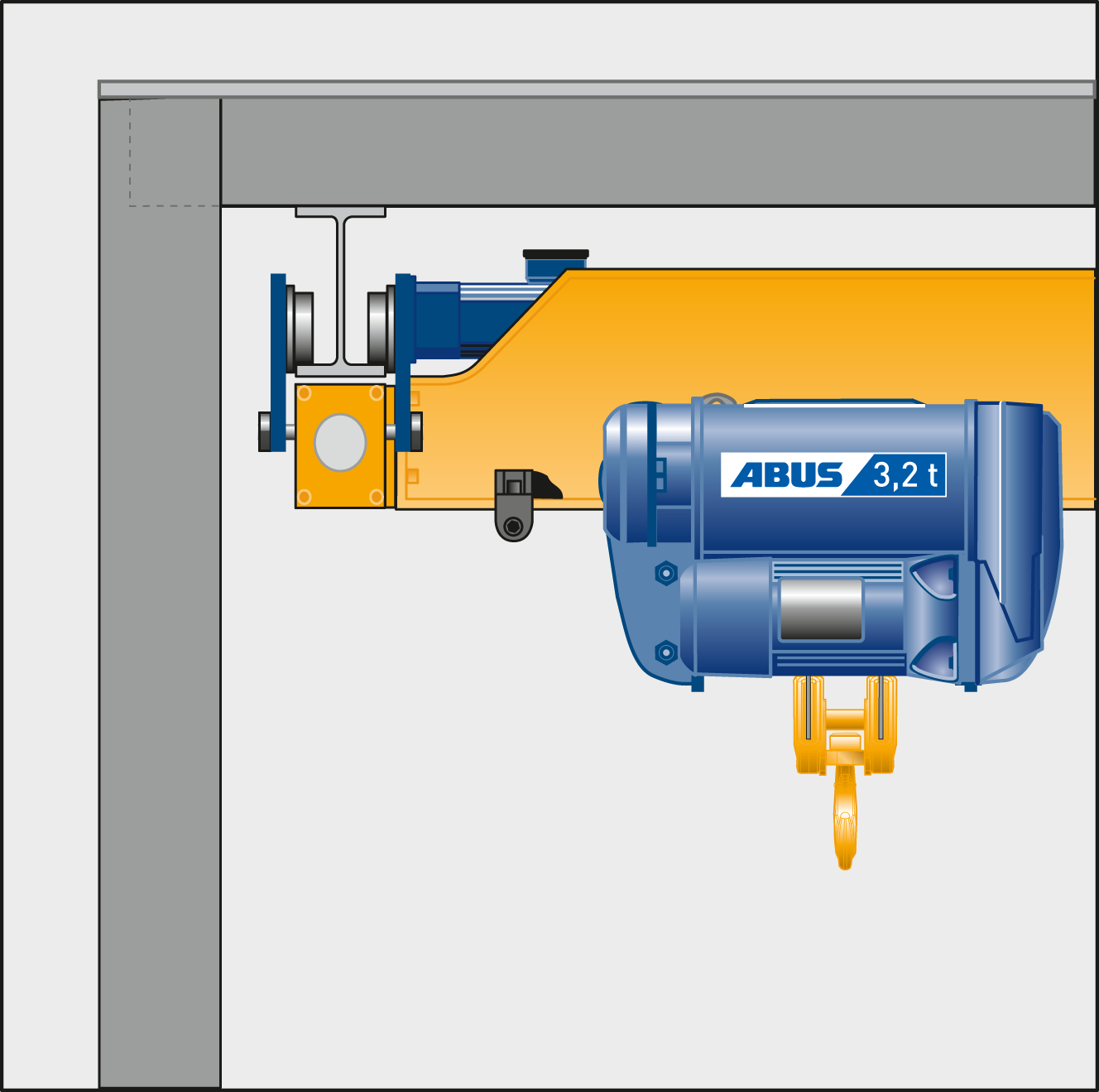

Stooled up configuration Version 2 (optimised hook height without crane girder cantilevers
