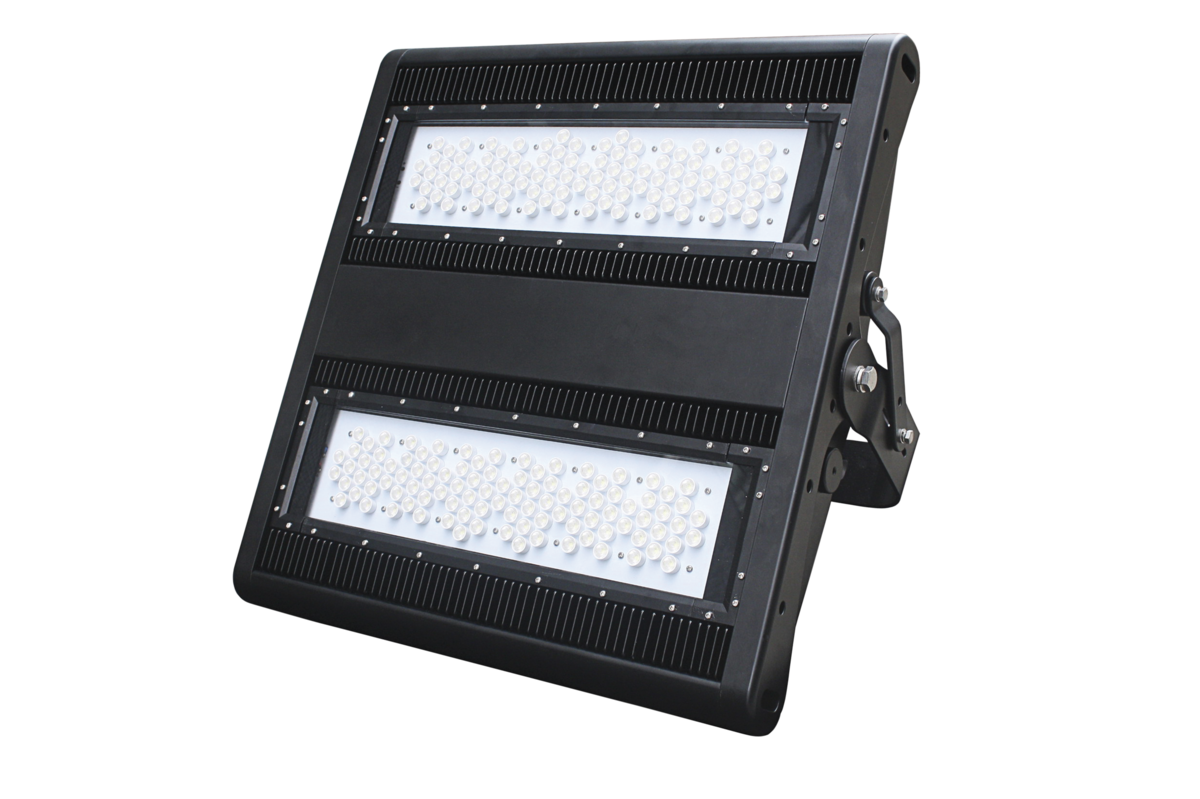

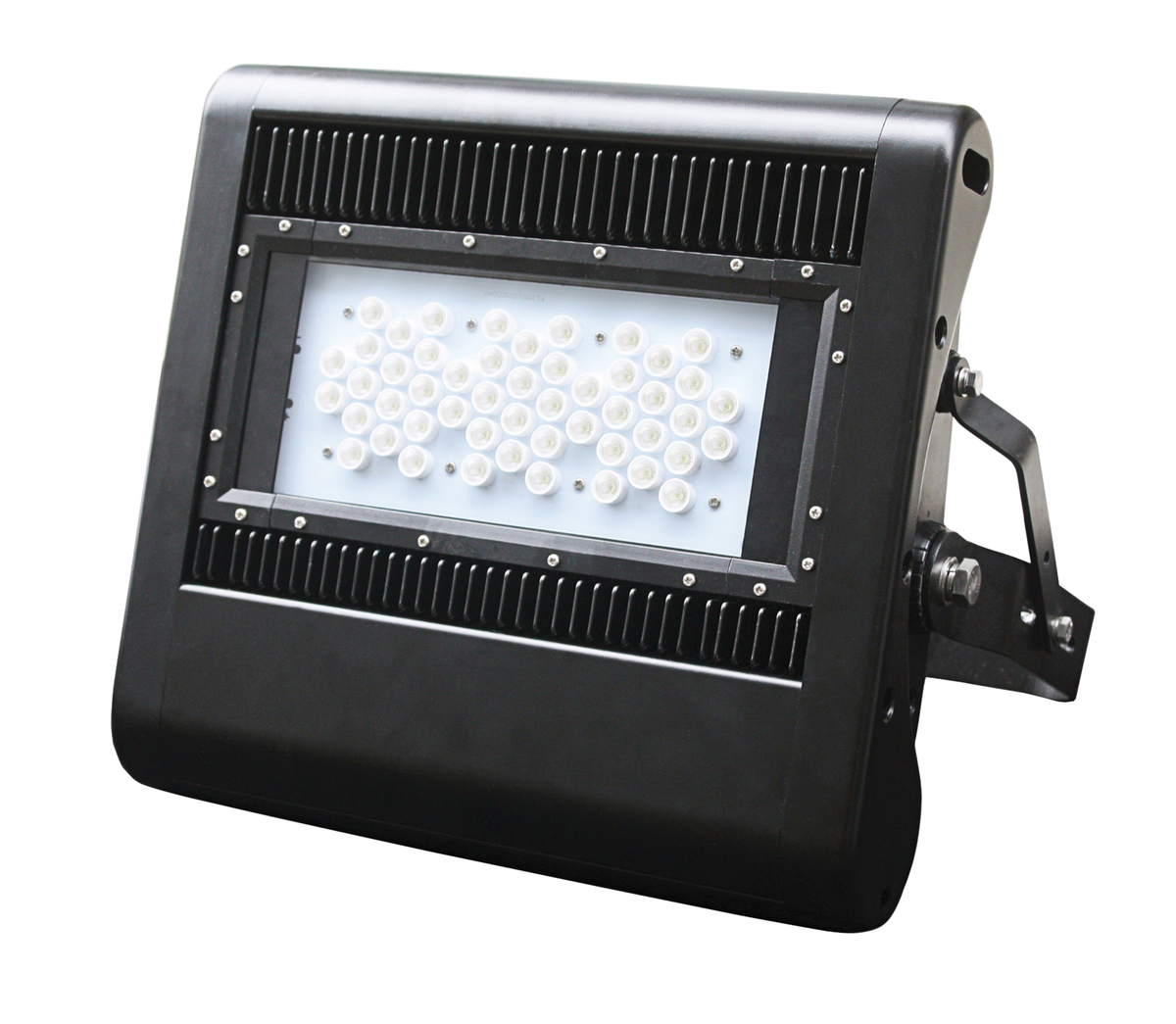

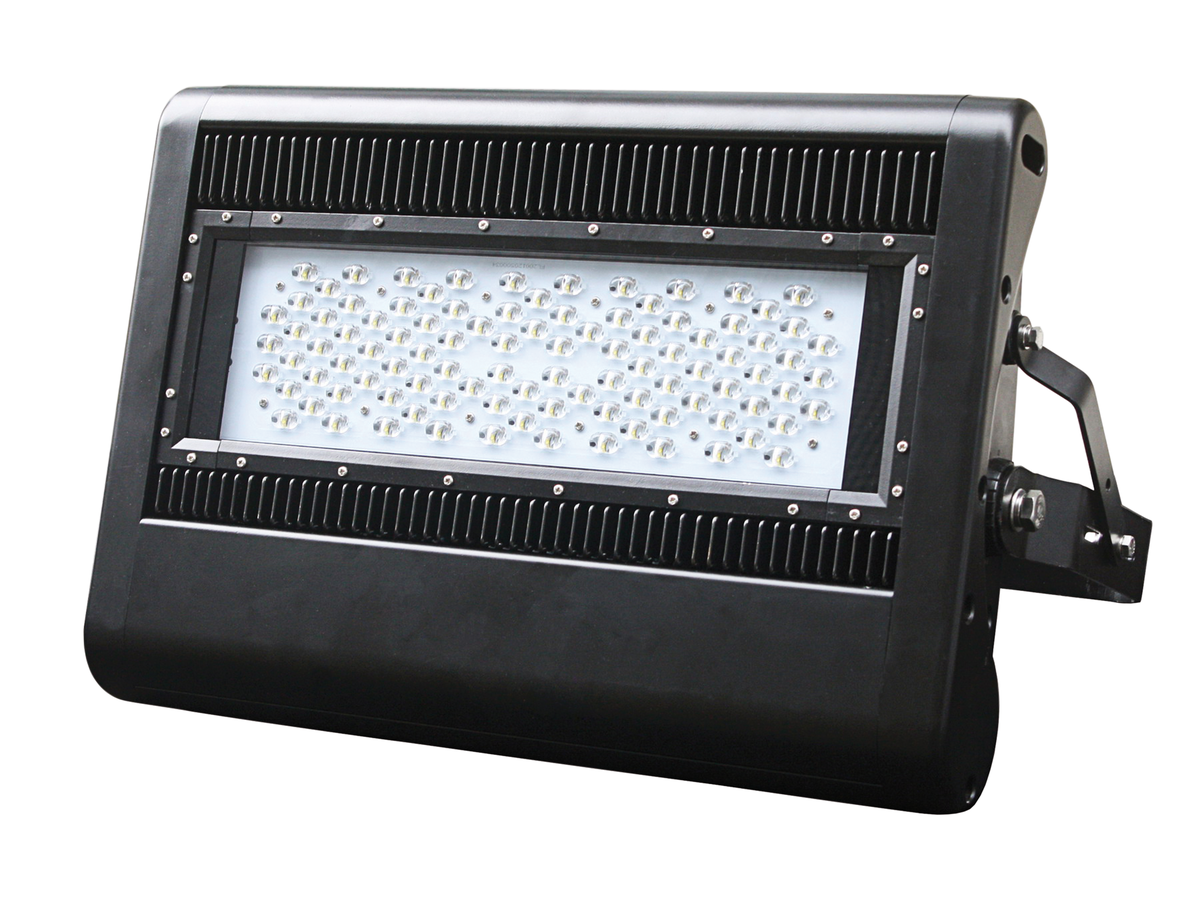

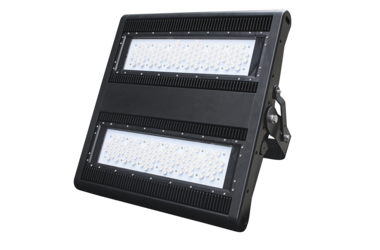

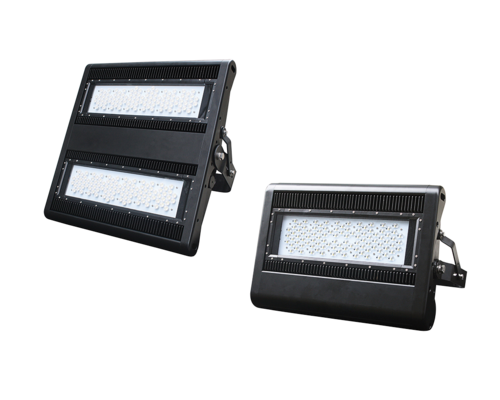

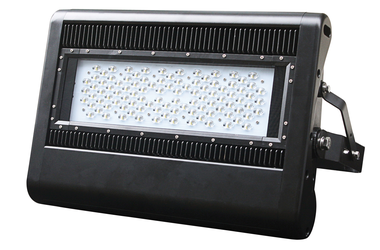

At a glance
- Immediate brightness
- Operating temperature: -30°C to +50°C
- Input voltage AC 100 - 240 V, 50 / 60 Hz
- Protection class IP 55
- Colour temperature 5000 K
- Over 50,000 hours of service life
- Over 100,000 switching cycles
- Energy efficiency class A+
Scope of supply:
LED lighting includes switching element in the crane control device and the required number of transformers.
Crane track area plus 1.5 m width; minus 1.0 m length; height above ground 0.25 m
Note regarding orientation:
Excerpt from workplace guideline ASR - A3.4: Production & similar activity 150 lx, packing areas 300 lx, laboratories 500 lx

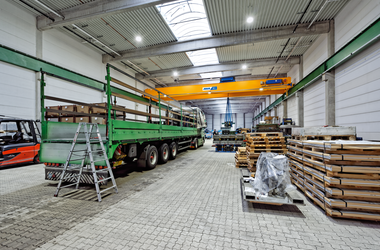

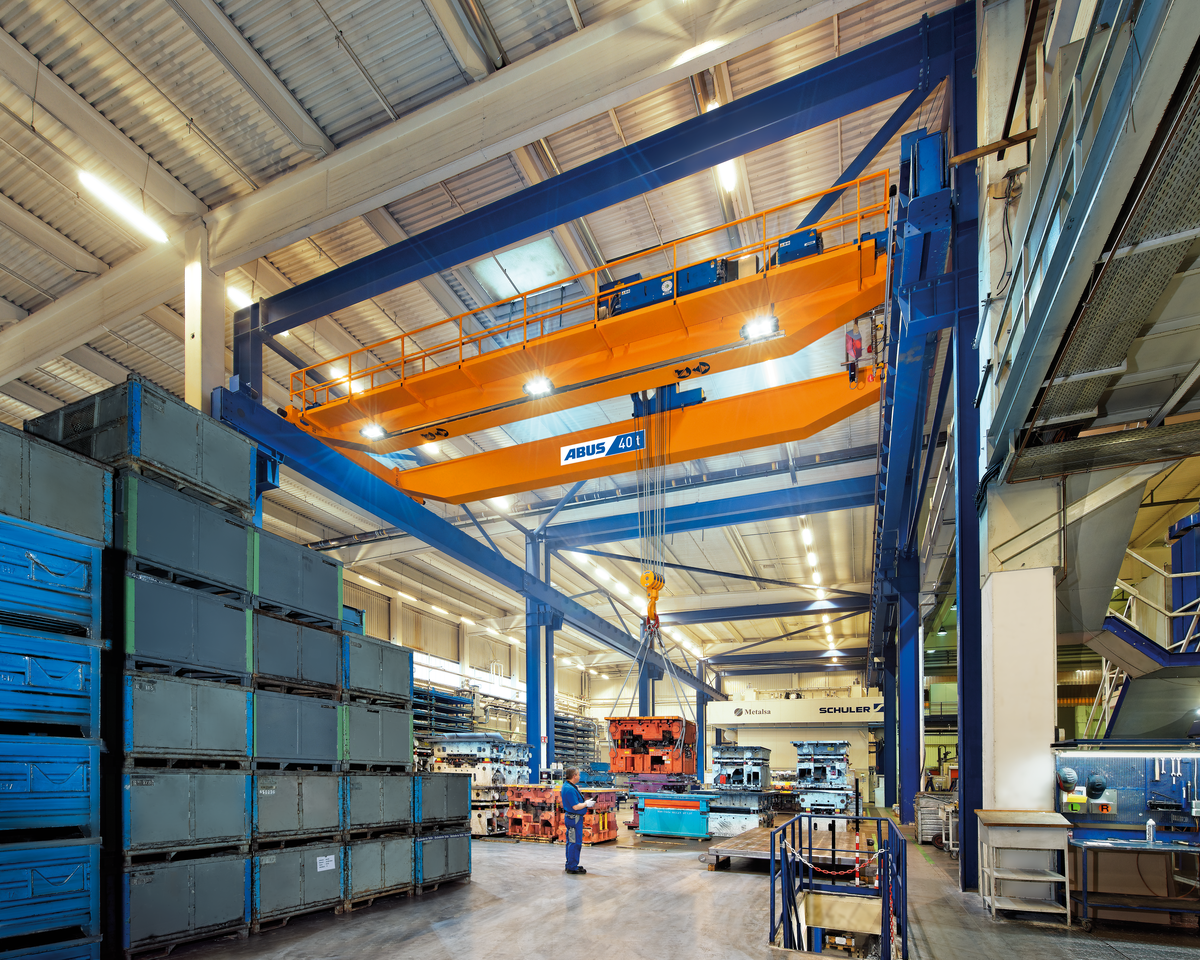

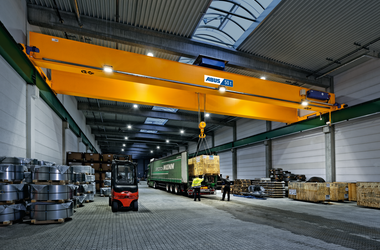

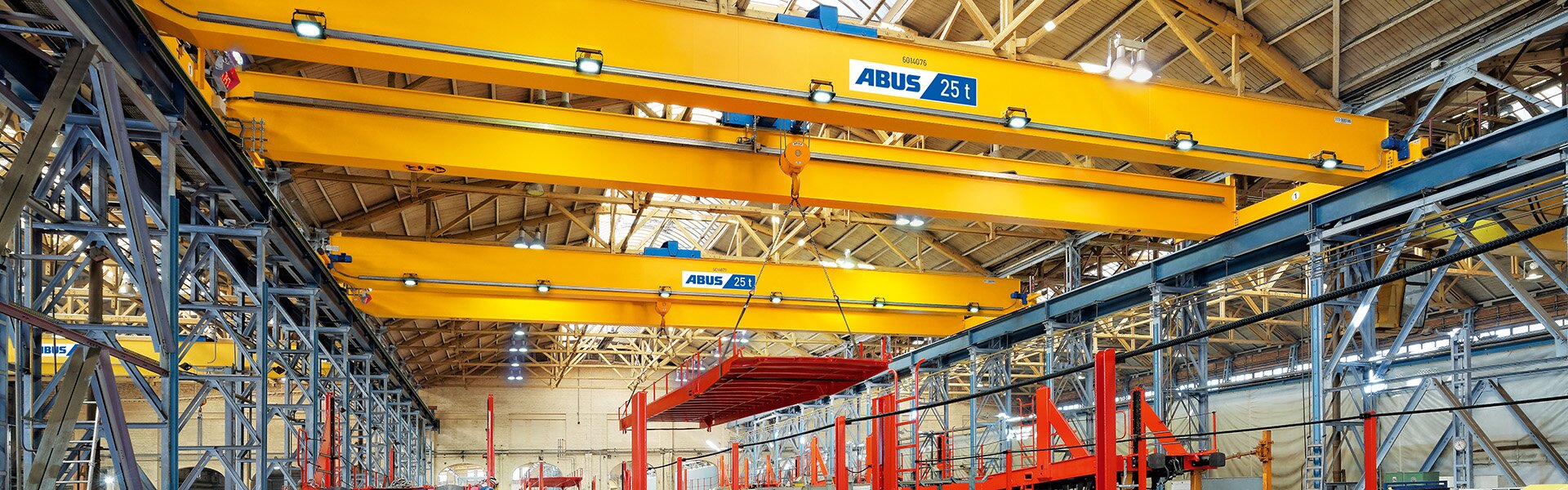

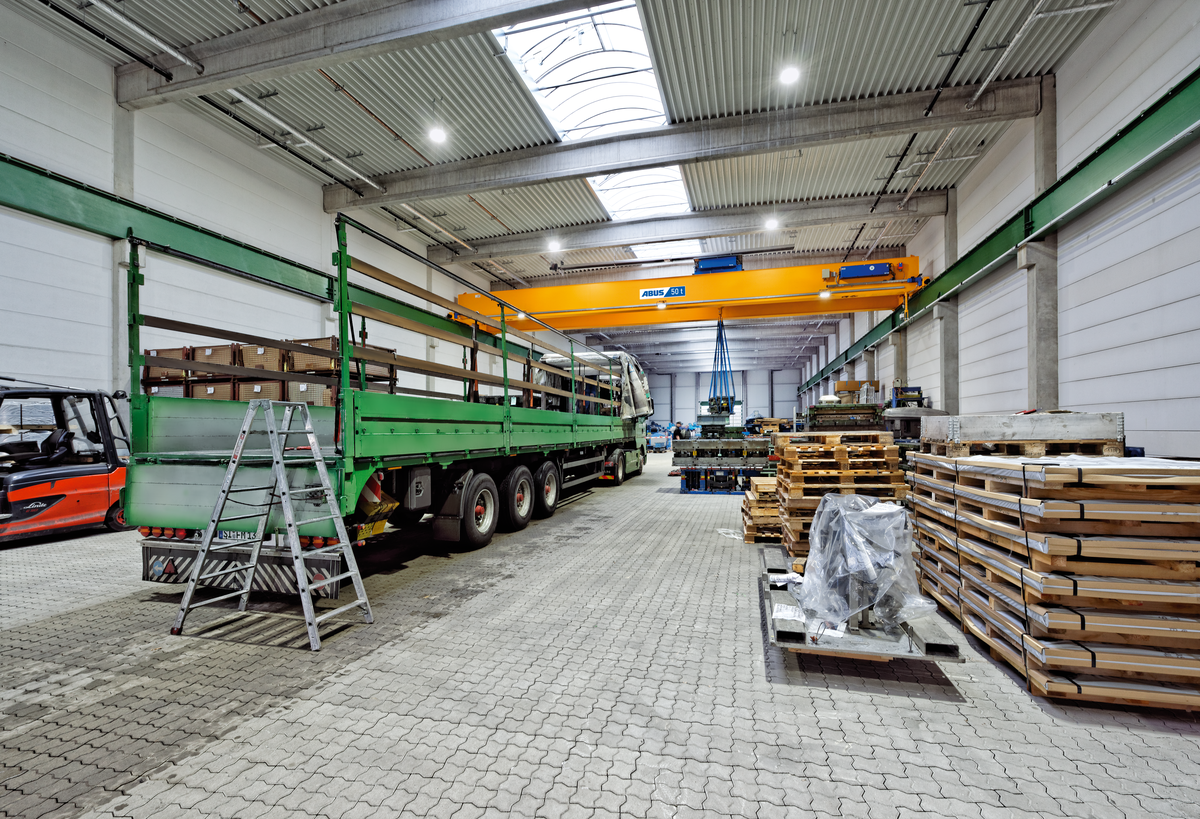

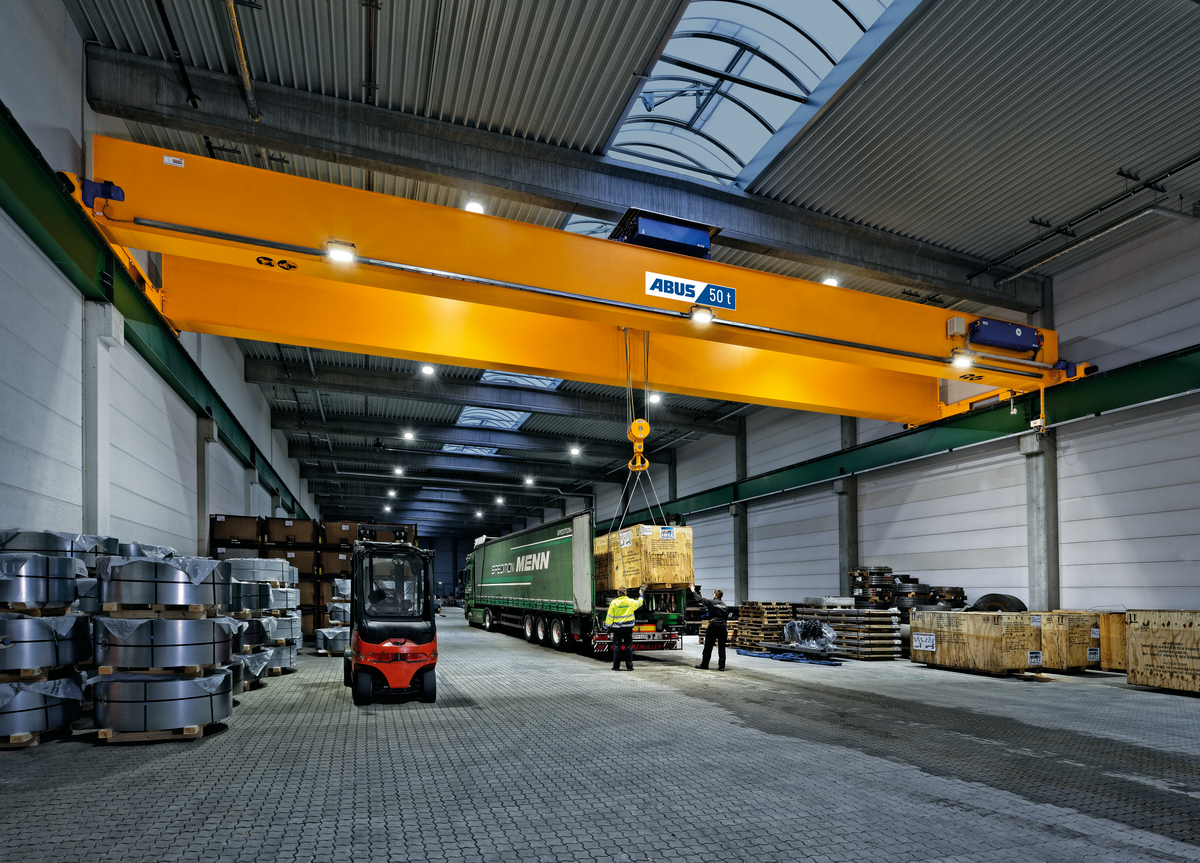

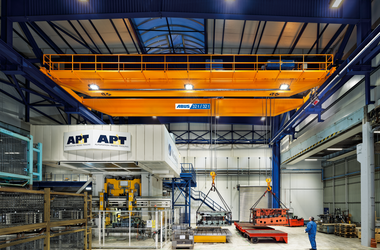

We assume that the crane lighting serves only in compensating for the shadows cast by the crane (the crane is lit by indoor lighting of the building) and therefore recommend lighting with 200 lx on average. Should a higher lighting intensity be required according to guidelines such as the ASR, lighting with 300 lx or 500 lx on average is specified on the following page. If the crane lighting is used in areas without external lighting or if you require a higher lighting intensity, please contact us.
