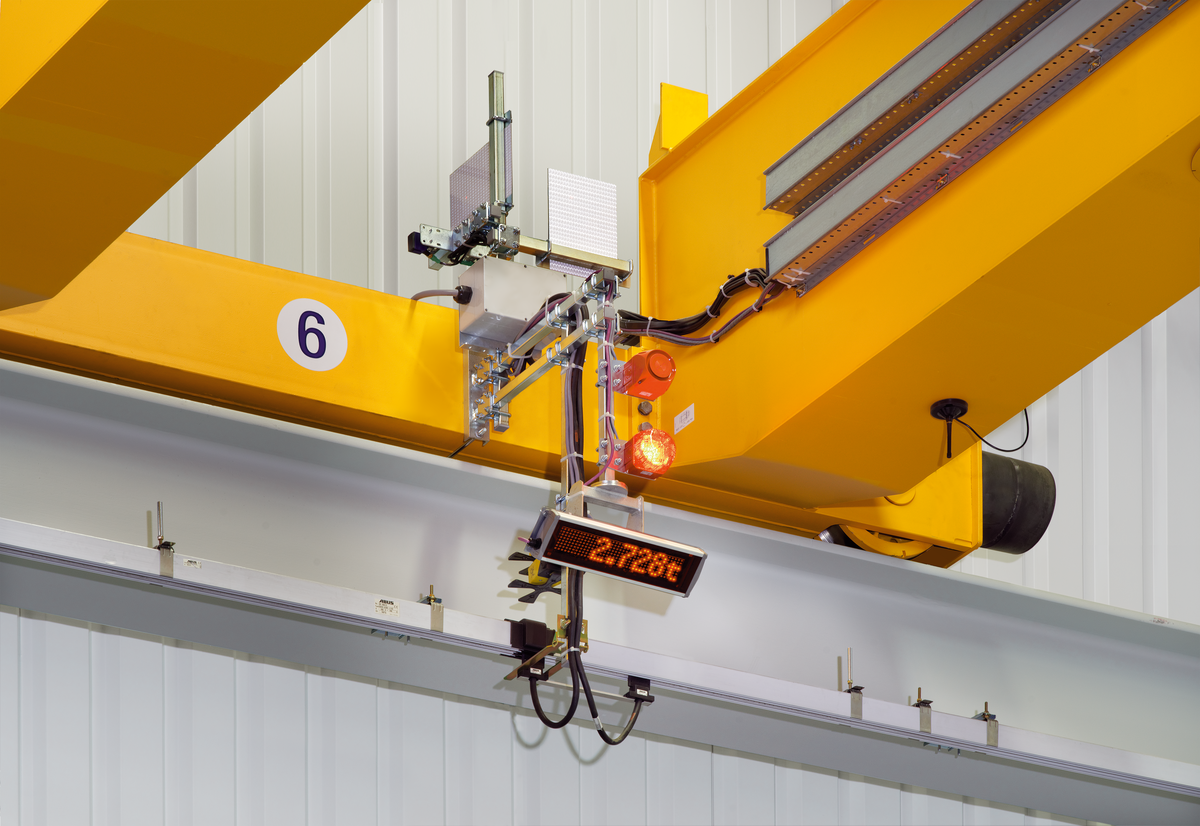

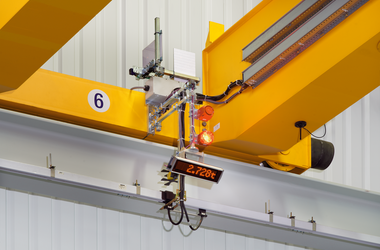

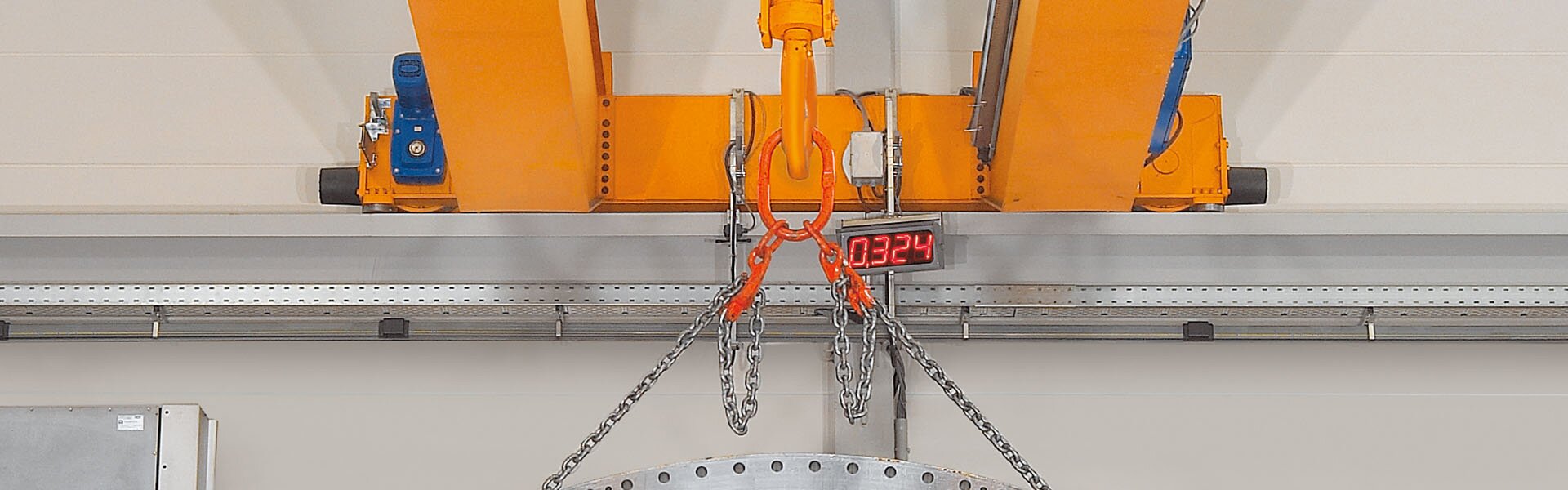

End carriage of a double-girder overhead crane of the ZLK type with load display

Main features:

  • High dimensional precision
  • Smooth starting
  • Smooth switching
  • Smooth braking
  • Maintenance-free motors
  • Wheel flange guide
  • Ultrasonically tested main girder connection plates
  • Sturdy design
  • Complete standard equipment
  • Plug-in connector for electrical connections with brake recifier fitted in

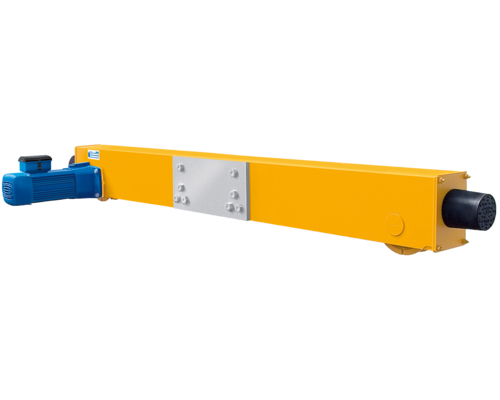

The image shows an undercarriage beam for a single-girder overhead travelling crane. End buffers are attached to the front ends. The drive unit with motor and gearbox can be seen on the driven side.
Interested in this product?
Then request now for an offer!
Price enquiry

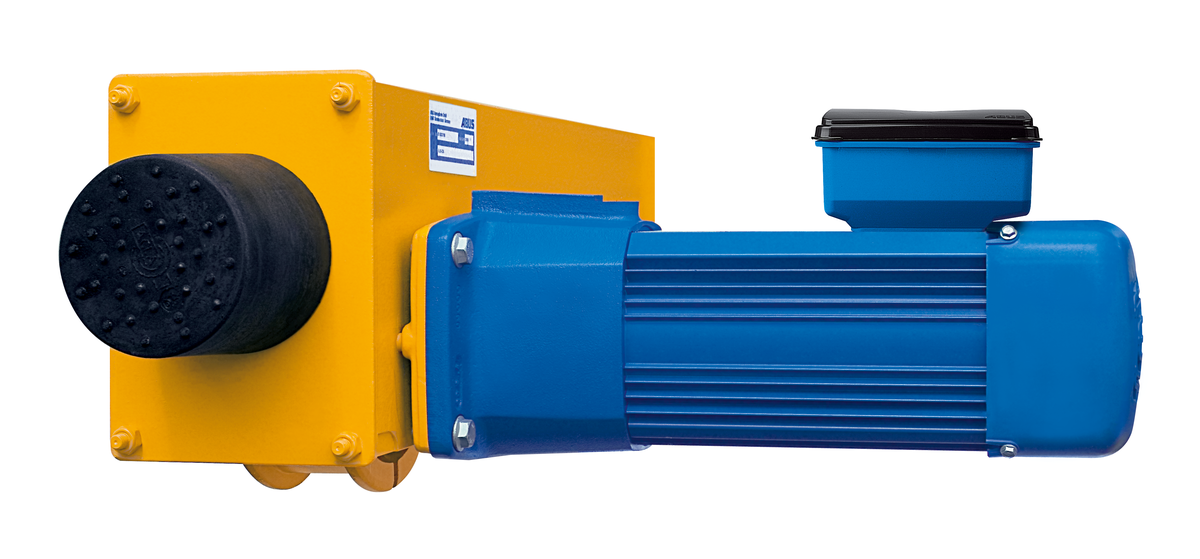

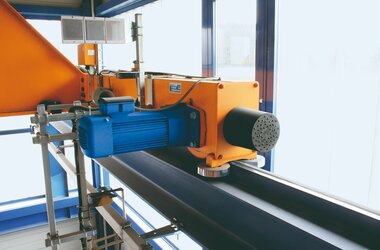

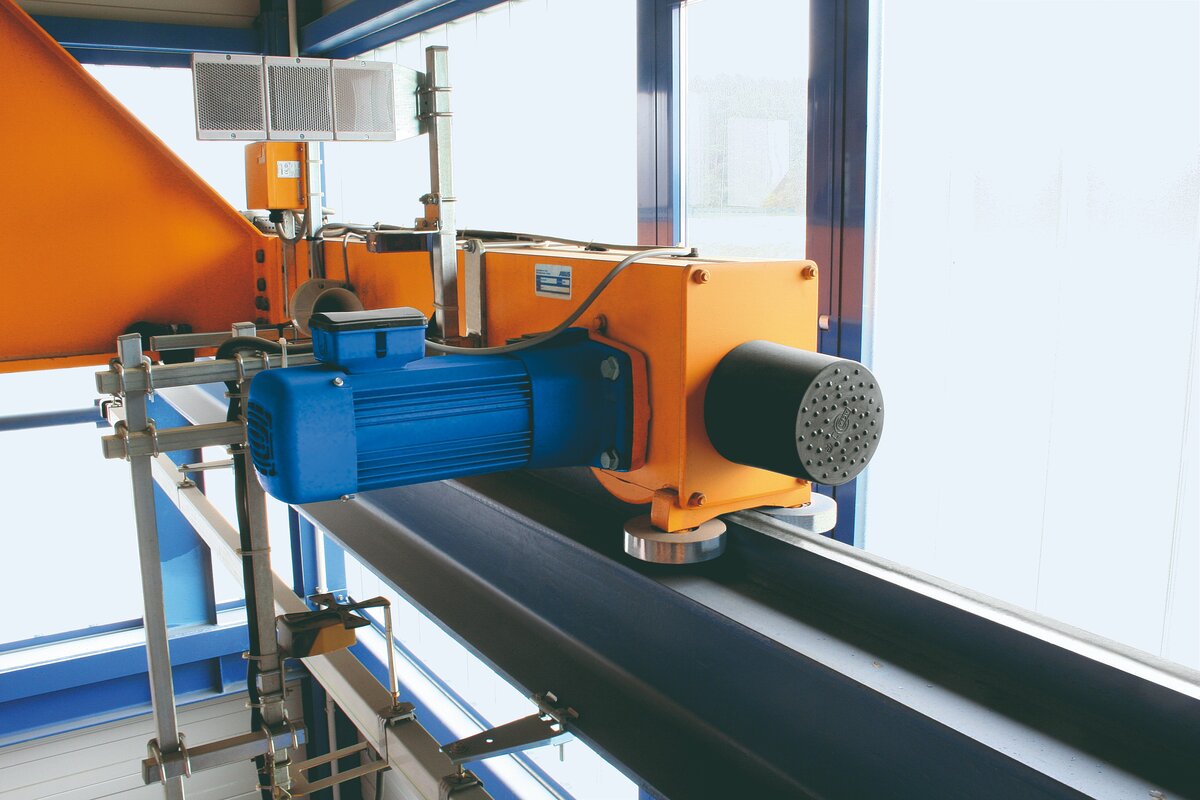

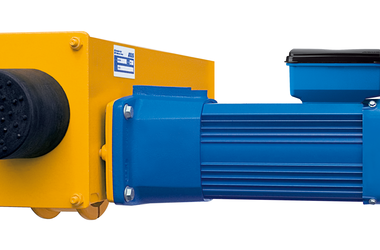

The image shows an attachment. End buffers are attached to the front ends. A traction drive is flanged to the side. The image shows a chassis beam with a driven wheel on a crane runway. Lower guide rollers are attached to its front end. There is a rubber buffer at the head end of the chassis beam.

END CARRIAGES & WHEEL BLOCKS

Steel structure in accordance with DIN 15018. As all the machining is performed in one jig, the structure has a high degree of mechanical precision.

Connected to main girders by high-strength bolts. Wheels with roller bearings and permanent lubrication. Motor with smooth starting and stopping characteristics. With integrated DC power supply for sturdy, durable electro-mechanical disc brake. Motor entirely maintenance-free. Steel structure with single-layer painting RAL 1007 daffodil yellow, motors painted traffic blue, RAL 5017.


Scope of supply:

Steel structure with built-in wheels, buffers and buffer plates, connection plates with high-strength connection to main girder, geared brake motor with plug-in connector and built-in braking rectifier.
